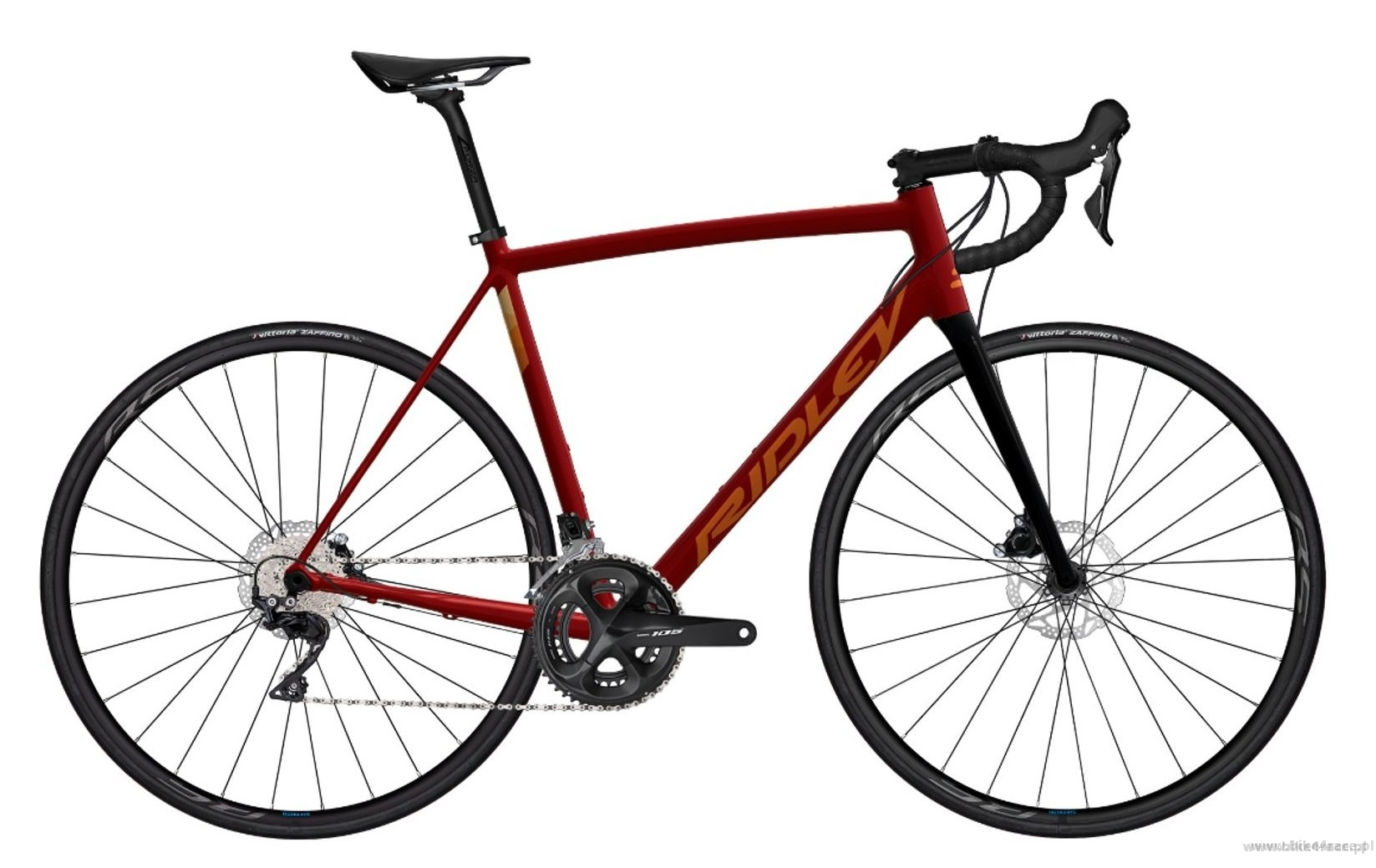

Road frameset RIDLEY FENIX SLA DISC - color FAD-02Cs (Bordeaux Red-Orange- Dark Yellow)

The Fenix SLA Disc is the quintessential “all-round” bike. It offers the perfect blend between performance, weight, strength, stiffness and especially comfort for long days in the saddle. While the Fenix expertly handles top competition, it is also perfectly suited for the part-time racer or recreational rider in terms of performance, comfort and cost. It's the perfect bike for cyclists who are looking for a super strong impact-resistant frame, thanks to the alloy, diamond shaped down tube. Our knowledge of our lightweight models has been integrated in this bike, resulting in a lighter disc frame.

• 6061-6066 triple butted alloy tubes improves the weight and handling

• oversized diamond shaped sharp edge tubes creates reinforced edges for a robust frame with increased impact-resistance
• straight carbon fork provides superb handling conditions when cornering
• internal cabling also saves some extra weight and offers the bike a clean look
• compatibile with flatmount disc brakes
• availaible at sizes XXS-XL

FENIX SLA DISC	XXS	XS	S	M	L	XL
A - MAX. SADDLE HEIGHT	740	770	800	835	860	890
B - SEAT TUBE, CENTER-TOP	450	480	510	540	570	600
C - TOP TUBE, HORIZONTAL	515	525	545	565	585	600
D - HEAD TUBE LENGTH	107	127	142	172	202	220
E - SEAT TUBE ANGLE	75,0	74,0	73,5	73,0	72,5	72,5
F - HEAD TUBE ANGLE	71,8	72,0	73,0	73,5	73,5	74,0
G - CHAINSTAY LENGTH	410	410	410	410	413	413
H - BB DROP	68	68	68	66	66	63
I - WHEELBASE	973	973	982	992	1010	1019
J - STANDOVER HEIGHT	732	757	778	810	841	868
S - STACK	507	527	543	573	599	625
R - REACH	379	374	384	390	396	403
