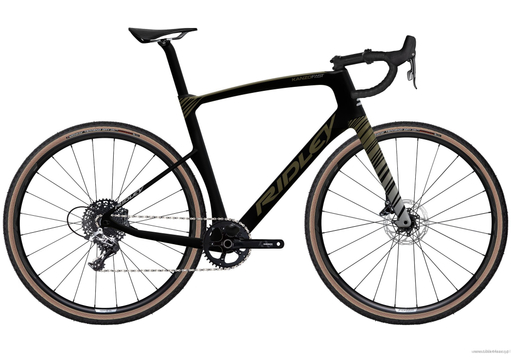

Gravel bicycle RIDLEY KANZO FAST - Apex XPLR 1x12s - color KAF-02Bm (Black-Battleship Grey-Camouflage Green)

The Kanzo Fast gravel bike is lightning fast on any terrain. It's effective power transfer helps you convert every single watt into maximum speed. No gravel bike is as responsive. It's also expert at cutting through wind while keeping you comfortable to ensure that you can confidently go the distance. Ridley engineers spent hours in the wind tunnel and on gravel roads for further development and testing. What we created in the end was the perfect, aerodynamic gravel bike to win gravel races. "It's The Fastest Way To Escape!

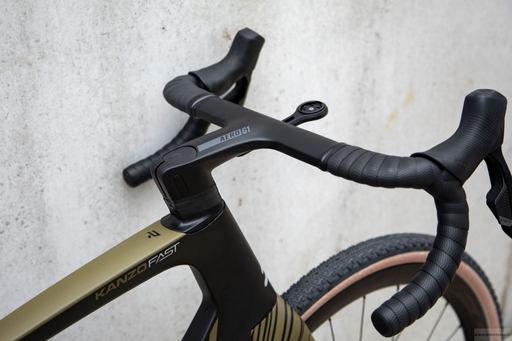

• F-Steerer ingeniously allows for fully internal cabling
• F-Tubing is our droplet-shaped tubing which significantly minimizes wind drag
• F-Wings reduces drag by drawing turbulent air away from spokes
• compatible with electronic and mechanical 1x shifting
• maximum tire clearance of 700x42 and fender mounts on frame and fork

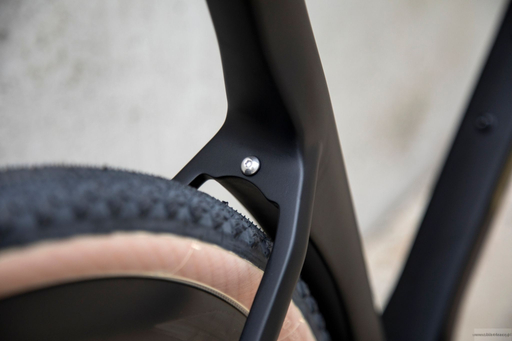

• the flexzones in the rearstays offer extra comfort by filtering the vibrations from all the different roadsurfaces you will ride
• all cables run full internally through the frame which avoids mud and water to ruin your shifting performance
• 12mm TA in frame and fork
• compatibile with flatmount disc brakes

KANZO FAST	XS	S	M	L	XL
A - MAX. SADDLE HEIGHT	760	785	810	835	860
B - SEAT TUBE, CENTER-TOP	470	495	520	545	570
C - TOP TUBE, HORIZONTAL	522	547	565	587	601
D - HEAD TUBE LENGTH	115	144	168	197	221
E - SEAT TUBE ANGLE	74,5	73,5	73,0	72,5	73,0
F - HEAD TUBE ANGLE	71,0	71,0	71,5	71,5	72,0
G - CHAINSTAY LENGTH	425	425	425	425	425
H - BB DROP	74	72	72	70	70
I - WHEELBASE	1001	1017	1026	1044	1053
J - STANDOVER HEIGHT	768	794	819	844	869
S - STACK	537	563	587	613	638
R - REACH	372	380	385	393	400
